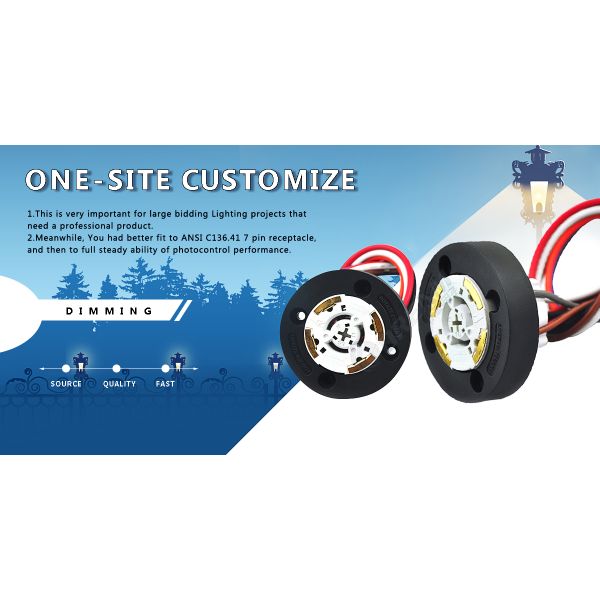

7-pin NEMA socket

Product Categories

Shenzhen DREAM-START Electronics Co., LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 7pin NEMA socket
Brand: DREAM-START
Price: 1 USD

Brand Name : DREAM-START

Model Number : DR-E03

Certification : UL/CUL

Place of Origin : Guangdong, China

MOQ : ≥1 pieces

Price : $1-1.72/pieces 10-500pieces

Payment Terms : Western Union, MoneyGram, D/P, T/T, D/A, L/C

Supply Ability : 100000Prpieces

Delivery Time : 1-5 work days

Packaging Details : 10X10X10 cm/Customization

Name : Photocell Sensor

Series : photocell sensor switch

Output : Switching Transducer

color : Black

Current Rating : 15A

Pin : 3 5 7pin

Rated Voltage : 110V-480V AC

Rated Frequency : 50/60HZ

Contact Now

Basic Specification:

DR-E03 (Photocontrol) Parameters
Sensor Type	Photodiode
Rated Voltage	110V~480V AC
Reted Frequency	50/60HZ
Working Mode	<10~20 Lux / ON , >30~60Lux / OFF,Time-delay: 2 Seconds
Load Current	16A (220Vac)
Ambient Temp	-40℃~105℃
Size	φ80.5mm * φ51.6mm(Height)
Case Material	UV resistant PC
Shell Design	It Conforms to American National Standard ANSI C136.41-2013
Safety Certification	E510435,Vol 1 , Contact Us For More Informations
Life Span	Quality Assurance for 3 Years
Applications	Street /Roadway Lighting, Photocontrol Lighting, Parking Lot Lighting, Garden Lighting, Smart City, Smart Street Light, 5G, Smart Pole

What are NEMA photocell receptacles

On the top of most street lights or parking lot lights is a blue or black round knob that is actually used as a lighting control device.

The most common lighting control is a dusk to dawn or photocell device. The receptacle can be used for dusk to dawn sensors,

but also for advanced DALI / Bluetooth controls. The 3, 5 and 7 pin standard are set by NEMA and are standard in the lighting

industry across all manufacturers. They are all the same 3 pin twist lock system so they are easily swapped out. The 5 pin and

7 pin add some additional features.

If you have an outdoor lighting fixture with a receptacle but want to turn it on or off with a switch or use another control instead

of the photocell, there is an easy fix. The sensor can easily be swapped with a shorting cap or bypass cap outfitted with the same

3 prongs to bypass the sensor.
